Wired LANs : Ethernet

Ethernet



• One of the most widely used wired LAN technologies
• Operates in Data-Link-Layer and Physical Layer
• Family of networking technologies that are defined in the IEEE 802.2 and 802.3 standards
• Supports data band witdhs of 10, 100, 10,000, 40,000, and 100,000 (100Gbps)



Ethernet standards



• Define Layer 2 protocols and Layer 1 technologies
• Two separate sublayers of the data link layer to operate - Logical Link Control (LLC) and the MAC sublayers

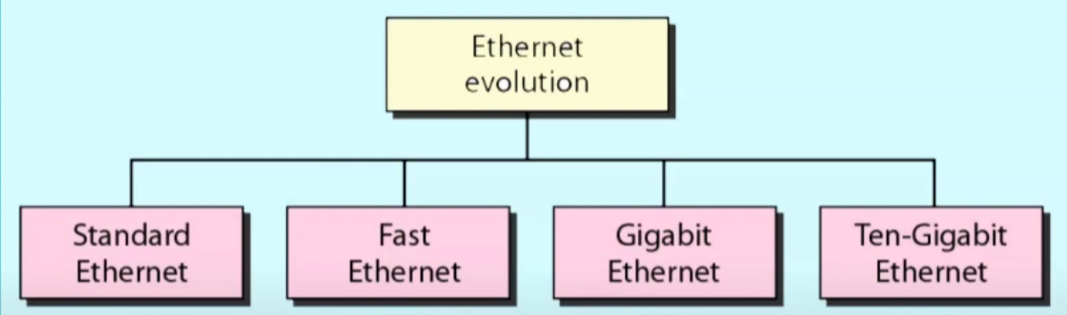

Evolution of Ethernet





Ethernet frame format





• Preamble : Synchronization Purpose, 56bit of alternating 1s and 0s
• SFD : Delimiter and also synchronization. The last two bits indicate the receiver that the upcoming field is the destination address
• Destination address : Destination MAC address
• Source address : Source MAC address
• CRC : Error Detection



Unicast and Multicast address



• multicast address: the recipients are all the stations on the LAN. A broadcast destination address is forty-eight Is.



Changes in the Standard

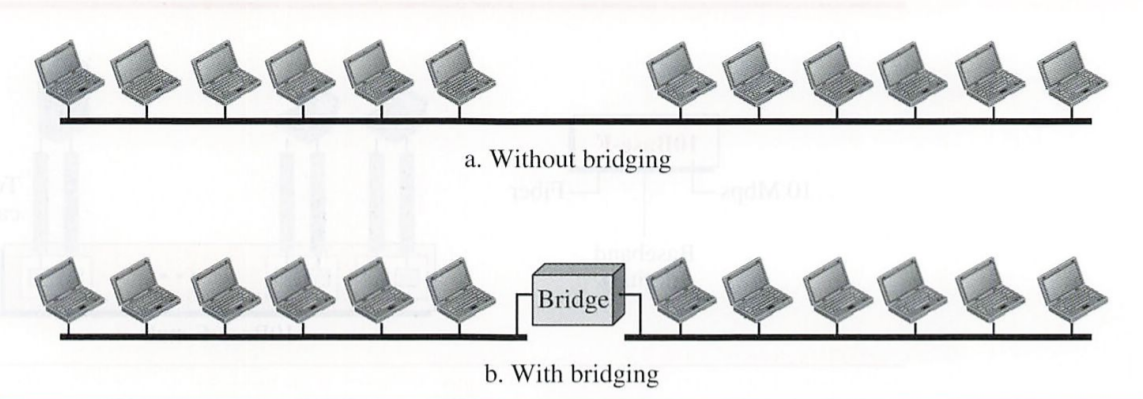

Bridged Ethernet





• The more bridges are divided, the more the effects of the collision are dispersed.



Switched Ethernet



• Share Bandwidth all equally.
• Since it is connected to a switch, there is no effect on other domain because the collision occurs in an independent space.

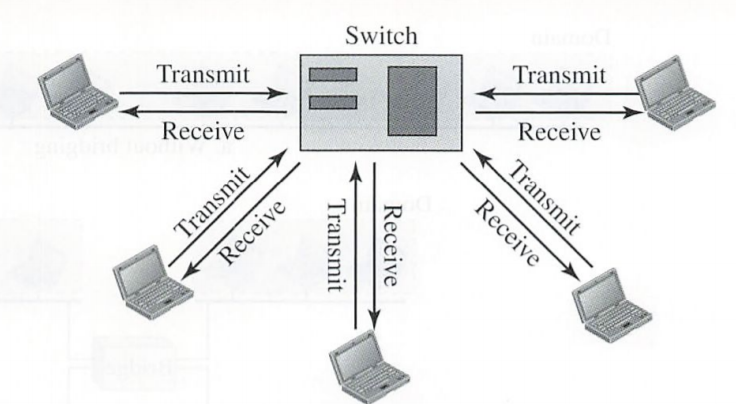

Full-duplex switched Ethernet



• Full-duplex connection
