데이터 링크 제어 DLC(Data Link Control)[+] Security [+]/네트워크 2020. 10. 15. 00:20
Framing
- When a message is carried in one very large frame, even a single-bit error would require the retransmission of the whole frame
fixed-size framming
- there is no defining the boundaries of frame
- the size itself can be used a delimiter
- example : ATM, WAN
Variable size framming

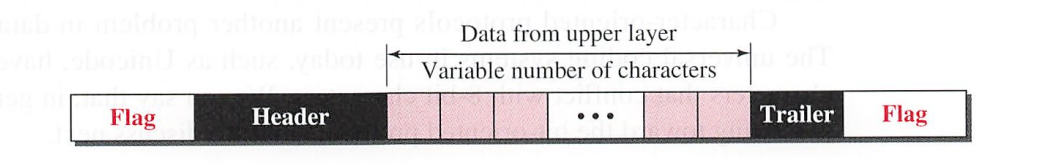

Character-Oriented framming
- carried 8-bit character (such as ASCII)
- To seperate one frame from next one, an 8-bit flag is added at beginning and the end of the frame
- The Header carries the source and destination and other control infromation (8-bit)
- The Trailer carries error detection redandunt bits (8-bit)
Bit-Oriented framming
- delimetiter to seperate one frame from the other, Protocol uses a special 8-bit pattern flag (01111110)

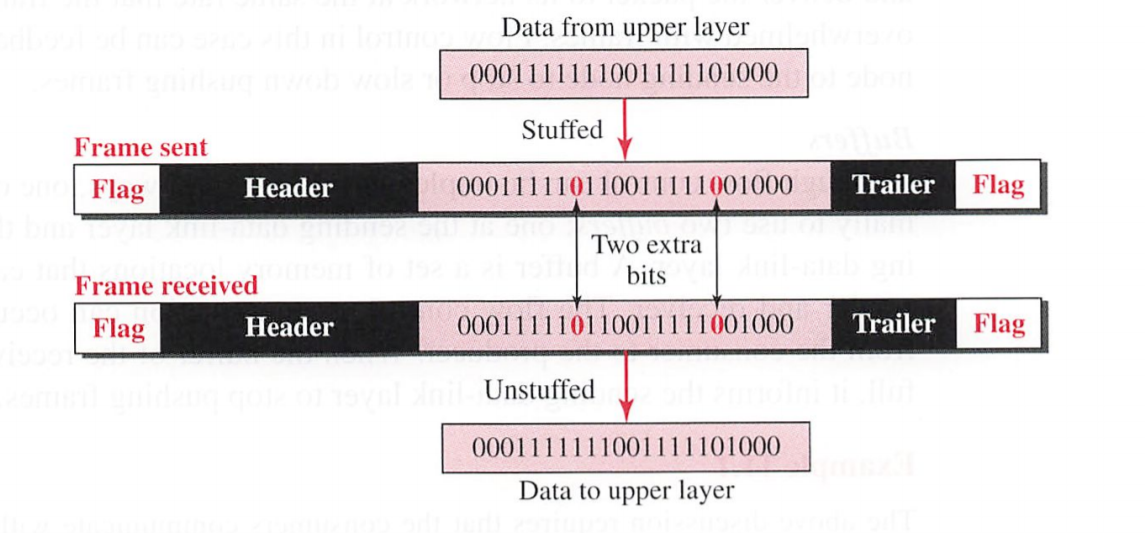

- In dataword, If we encounter 011111, to avoid misunderstaning with flag, add single 0 bit; 01111110 -> 011111010 (It called bit stuffing)
Bit-Oriented frame Bit Stuffing Flow and Error control
Flow control
- If the items are produced faster than they can be consumed, the consumer can be overwhelmed and may need to discard some ltems. (Vice versa)
Buffer
- AIthough flow control can be implemented in several ways, one of the solutions is normally to use two buffers
- A buffer is a set of memory locatlons that can hold packets at the sender and receiver
- When the buffer of the receiving data-link layer is full, it informs the sending data-link layer to stop pushing frames.
Error control
- Error control at the data-link layer is normally very simple and implemented using one of the following two methods.
- In both methods, a CRC is added to the frame header by the sender and checked by the receiver.
- In the first method, if the frame is corrupted, it is silently discarded; if it is not corrupted, the packet is delivered to the network layer. This method is used mostly in wired LANs such as Ethernet.
- ln the second method, if the frame is corrupted, it is silently discarded; if it is not corrupted, an acknowledgment is sent(for the purpose of both flow and error control) to the sender.
Data Link Control Protocols
- Simple
- Stop and Wait
- Go Back N (disapeared)
- Selective Repeat (disapeared)
Piggyback
- In sender site, not immediatly send ACK
- Only if we have data to transfer.
- Add(Piggybacking) an ACK field within an existing data frame.
